Dashboard Data API

Permissions

The permissions of the API key are determined by the user who created it.

Managing API Keys

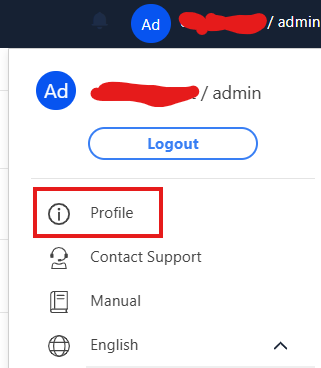

You can manage your API keys on the Account Settings page in the upper right corner. Click View API Keys

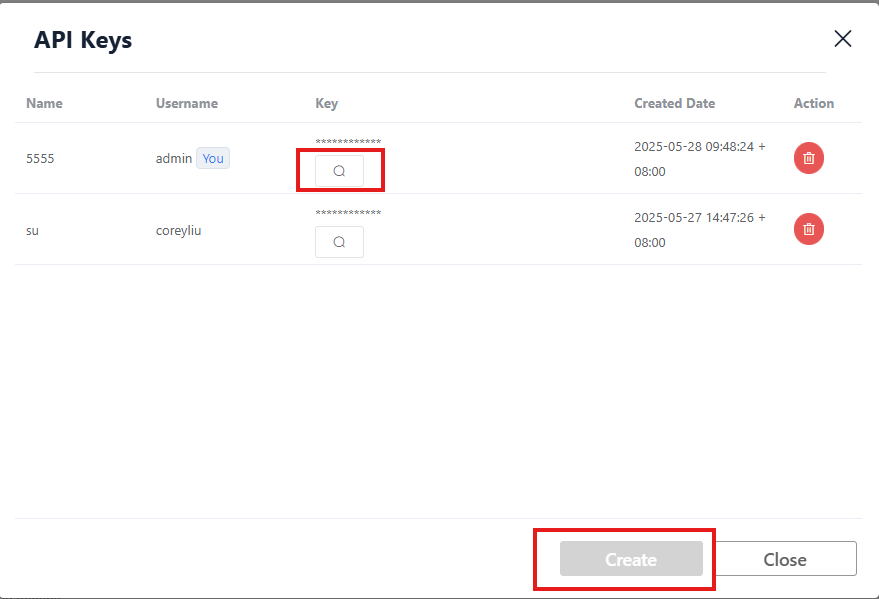

Click Add to create a new key

You can click the magnifying glass to view your key

You can also delete it directly

API Documentation

• Global server documentation location https://www.weincloud.net/open-api

• China server documentation location https://www.weincloud.net.cn/open-api

Or you can click API Documentation to view the available APIs

This will list all available APIs. The Authorize button in the upper right corner is where you place your API key

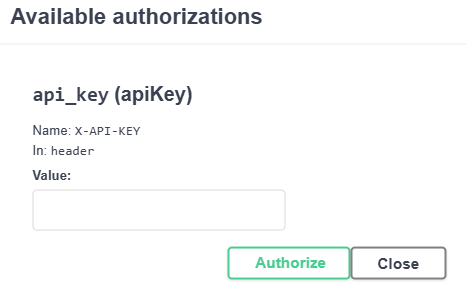

Please enter your API key in the Value field

If you want to use it manually

Simply include the following in the HTTP Request Header

X-API-KEY: {your API key}

Then you can access your API

API Introduction

The following APIs are currently available to retrieve relevant data (for detailed API usage, please refer to API Documentation)

Get Tag Properties

GET /dashboard/api/v2/open_api/hmi/{hw_key}/tags

Retrieve all tag information for the specified HMI, including tag names, data types, units, and other properties.

Get Tag Historical Data

POST /dashboard/api/v2/open_api/history

Retrieve historical data for specified tags. You can specify time range and sampling method, suitable for drawing trend charts or data analysis.

• Can retrieve historical data for multiple tags at once, and can specify the sampling method for each tag (average, sum, maximum, minimum, etc.)
• There are data limits, please refer to the Data Limit section for details

Get Latest Tag Data

POST /dashboard/api/v2/open_api/latest

Retrieve the latest values for specified tags, suitable for real-time monitoring or dashboard display.

• Can retrieve latest data for multiple tags at once
• There are data limits, please refer to the Data Limit section for details

Get Alarm Categories

GET /dashboard/api/v2/open_api/alarms/categories

Retrieve a list of all alarm categories in the system, used for alarm management and category queries.

Get Alarm Rules

POST /dashboard/api/v2/open_api/hmi/{hw_key}/alarms/rules

Retrieve alarm rule settings for the specified HMI, including trigger conditions, alarm levels, and other information.

Get Alarm History

POST /dashboard/api/v2/open_api/hmi/{hw_key}/alarms/history

Retrieve alarm history records for the specified HMI. You can specify time range and filter conditions, used for alarm tracking and analysis.

Data Limit

To ensure system stability, there are currently restrictions on retrieving tag historical data. The restrictions are as follows:

Maximum of 4320 data points can be retrieved in a single request

• In real-time mode of the trend chart, we use 5 seconds as the unit to retrieve data, so you can retrieve up to 6 hours of data at most

60(seconds)*60(minutes)*6(hours)/5(seconds) = 4320

• If aggregate mode is enabled, we use window size as the unit to retrieve data If the window size is 1 minute, then you can retrieve up to 3 days of data at most

60(seconds)*60(minutes)*24(hours)*3(days)/60(seconds) = 4320

Actions to take when encountering single retrieval limits

• Adjust the time range to within the limit
• Enable Aggregate Mode and adjust the window size to a larger value, which will reduce the amount of data retrieved each time
• Retrieve data in segments, divide the time range into multiple segments, retrieve data for one segment at a time, and finally merge these data

Traffic Limit

Currently, a single HMI can only retrieve approximately 100MBytes of data within 15 minutes. Exceeding this limit will result in retrieval failure
